BitArray

Written by Redu, with contributions by Atriace due to the question of “How do I create a bit array in JavaScript”.

This is a JavaScript class implementation of a BitArray extending DataView. It implements bit masks to access the bits which are technically stored as Bytes in the DataView. Conveniently, it also offers standard boolean operations.

Benefits of BitArray

• BitArray is developed with a performance first approach in mind. While indexed operations .at(i), .reset(i), .set(i) and .toggle(i) are expected to be slightly slower than Uint8Array or Int8Array when other operations are concerned, BitArray is many times faster or in par with TypedArrays and Arrays. Accordingly an algorithm using a mix of both indexed and other operations may yield an overall higher performance.

• The memory footprint of BitArray is much smaller than any other type of arrays having the same number of elements.

• Since BitArray extends DataView, all inherited methods like .getUint32() or .setUint8() etc. are available to BitArrays.

Constructor: BitArray(sizeOrBuffer)

• sizeOrBuffer: Either a pre-existing ArrayBuffer or a positive integer Number. In order to be able to deliver best performance, except for the indexed ones all properties or methods such as .popcnt, .all(), .clear(), .and() etc. use 32 bit access to the underlying ArrayBuffer. Accordingly the BitArray.buffer.byteLength is always set to minimum multiples of 4 that is equal to or greater than the requested integer size. In case sizeOrBuffer is of ArrayBuffer type and it’s byteLength is not a multiple of 4 then a new ArrayBuffer is generated in minimal correct size and the provided ArrayBuffer gets copied at it’s head. In theory BitArray should allow sizes up to 34,359,738,336 (0x07ffffffe0).

Syntax

new BitArray(buffer);
new BitArray(number);

Examples

Starting with something simple…

var a = new BitArray(10);
a.set(0);
a.set(3);

console.log(`${a}`); // 10010000000000000000000000000000
a.length;            // 32
a.size;              // 10
a.popcnt;            // 2

Static Methods

• BitArray.from(): Converts either an Array with unknown[] type or an ArrayBufferView type according to the elements being truthy or falsey. The length of the constructed BitArray is adjusted according to the rule mentioned above.
• BitArray.isBitArray(): Returns true if the provided argument is of BitArray type.
• BitArray.isConvertable(): Returns true if the provided argument is either a BitArray or an ArrayBufferView type.

Properties

• length: An immutable property returning the actual length of the BitArray. All operations are performed up to the length by the exception of convertions back to Arrays or TypedArrays which are done up to the size as explained below.
• popcnt: Returns the total number of 1s in the BitArray.
• size: An immutable property returning the requested size at construction time. Although you may set bits beyond the size value up to the length any convertions back to Arrays or TypedArrays are limited to the size property value. Accordingly if you intend to make such convertions then it would be wise to not populate the BitArray beyond it’s size.

Methods

Tests

• .all(): Returns true if all bits in the BitArray are set.

var a = new BitArray(10);
a.fill();  // 11111111111111111111111111111111
a.all();   // true
a.reset(7);// 11111110111111111111111111111111
a.all();   // false

• .any(): Returns true if any of the bits in the BitArray are set. If returns false then all bits are 0.

var a = new BitArray(10);
a.any();   // false
a.set(7);  // 00000001000000000000000000000000
a.any();   // true

• .isEqual(): Returns true if tested BitArrays have the same bits set.

var a = new BitArray(10),
    b;
a.randomize(); // 10001111001101010101001100111100
b = a.slice(); // 10001111001101010101001100111100
a.isEqual(b);  // true

Logical Operators

• .and(bar, inPlace = false): And of this and bar. Example: 1100 & 1001 = 1000. If inPlace is set to true then the operation is performed in place (this holds the result).

var a = new BitArray(10),
    b = new BitArray(37),
    c;

a.length;  // 32
a.size;    // 10
b.length;  // 64
b.size;    // 37

a.set(7);  // 00000001000000000000000000000000
a.set(8);  // 00000001100000000000000000000000
b.set(8);  // 0000000010000000000000000000000000000000000000000000000000000000

a.and(b);  // 00000001000000000000000000000000
b.and(a);  // 0000000100000000000000000000000000000000000000000000000000000000

• .not(inPlace = false): Flips all the bits in this buffer. Example: 1100 = 0011. If inPlace is set to true then the operation is performed in place (this holds the result).
• .or(bar, inPlace = false): Or of this and bar. Example: 1100 & 1001 = 1101. If inPlace is set to true then the operation is performed in place (this holds the result).
• .xor(bar, inPlace = false): Xor of this and bar. Example: 1100 & 1001 = 0101. If inPlace is set to true then the operation is performed in place (this holds the result).

Modifiers

• .clear(): Resets the BitArray in place.
• .fill(): Sets the BitArray in place.
• .randomize(): Sets or resets every bit in the BitArray randomly in place
• .reset(i): Resets the value at given index i.
• .set(i): Sets the value at given index i.
• .toggle(i): Flips the value at given index i.

Others

• .slice(a = 0, b = this.buffer.byteLength): Slices BitArray and returns a new BitArray with buffer.byteLength in multiples of 4 bytes (32 bits). Pay attention that the arguments are in byte unit. When invoked with no arguments, the default argument values instantiate a clone.
• .toString(): Returns the string representation of the BitArray.

Converting from a BitArray into an Array or TypedArray

Since BitArray is an iterable object, converting it into an Array is easily achieved by the spread operator. Conversion into TypeArrays is done by the TypedArray.from(BitArray) method as follows…

var a = new BitArray(10),
    b,
    c;
a.set(0);
a.set(3);

console.log(`${a}`);    // 10010000000000000000000000000000
a.length;               // 32

b = [...a];             // [1,0,0,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,]
c = Uint8Array.from(a); // Uint8Array(32) [1,0,0,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0, buffer: ArrayBuffer(32), byteLength: 32, byteOffset: 0, length: 32, Symbol(Symbol.toStringTag): 'Uint8Array']

Using DataView Access

Since BitArray is just an extension of the DataView object, all of it’s methods are inherited and at your service for free. However remember that, while reading or manipulating a BitArray’s ArrayBuffer through the inherited methods you should use byte indexed access.

Benchmarks

We bench a meaningful usecase of BitArray employed in an Optimized Segmented Sieve of Sundaram based single threaded PI function which returns the count of prime numbers up to a number n. Tests are run for 0 to different n values from 1000 to 1,000,000,000 both for Array, BitArray and Uint8Array. Benchmarking is done by Deno’s built in benchmarking tool. So just run

/path-to-project$ deno bench --unstable

at the root of the project to see it for yourself.

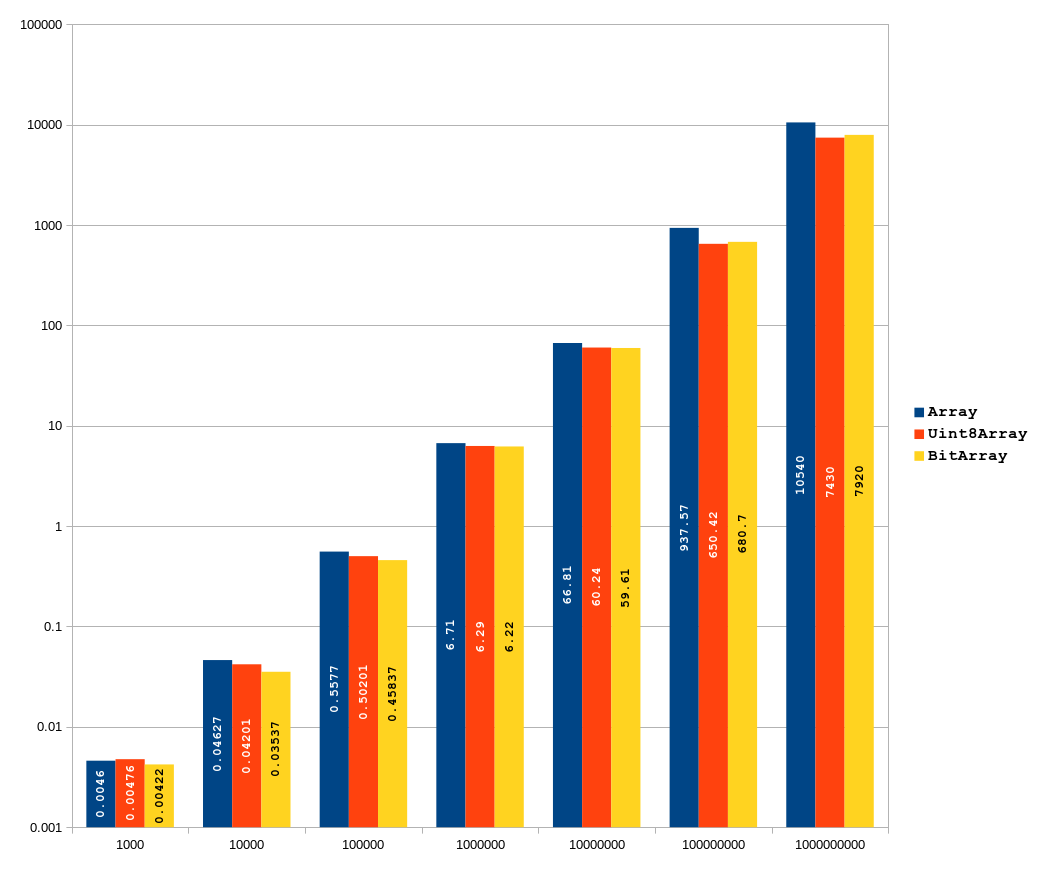

Keep in mind that both axis are in logaritmic scale. Although the length of the bars seems to be close, Array performs very bad especially when the size exceeds 33,554,433 limit (> 2²⁵) at which point Array reaches to ~268MB memory limit and it’s internal structure gets switched to NumberDictionary[16] yielding a dramatic slowdown of the V8 engine. BitArray and Uint8Array don’t get effected from this phenomenon. In fact BitArray should be using only ~4MB of memory at this point.

As seen from the above data and chart BitArray is faster or in par with Uint8Array. Besides we have to remember that BitArray has 1/8 of the memory footprint of an Uint8Array.

TODO

• With hopes to improve the performance of BitArray further, in the upcoming version I plan to include a WASM module to kick in after a certain size.
